Using JFrog Artifactory as a registry for Coroot

This guide walks through setting up Coroot in a Kubernetes cluster using JFrog Artifactory as a container image registry. This is common in air-gapped environments or organizations that require all images to be pulled from an internal registry.

Prerequisites​

  • A Kubernetes cluster with kubectl and Helm.
  • A JFrog Artifactory instance (cloud or self-hosted).

Step 1: Create a remote Docker repository​

Create a Remote Docker repository in Artifactory that proxies ghcr.io/coroot. Artifactory will automatically cache images on first pull, so no manual mirroring is required.

  1. Go to Administration → Repositories → Create a Repository → Remote.
Create a repository
  1. Select Docker as the package type.
  2. Set the Repository Key (e.g., coroot).
  3. Set the URL to https://ghcr.io.

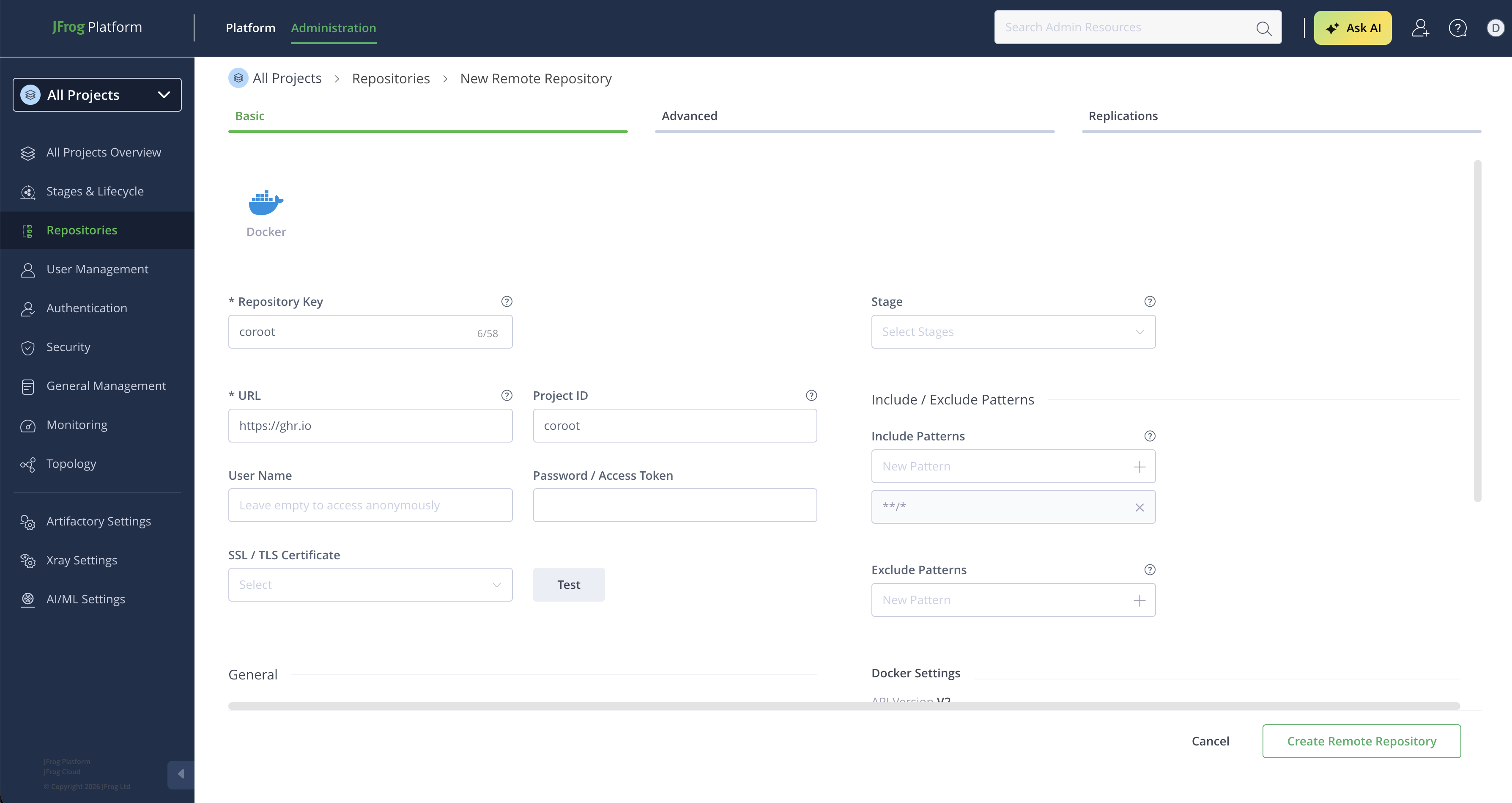

Remote repository configuration
  1. Click Create Remote Repository.

Step 2: Get the Docker client configuration​

After creating the repository, Artifactory provides the Docker client configuration with the authentication token.

  1. Go to Application → Artifactory → Repositories, find the coroot repository, and click Set Up Client.
  2. Select Docker as the client type.
Docker client setup

Copy the JSON configuration shown in the dialog — you'll use it to create the Kubernetes pull secret in the next step.

Step 3: Create the Kubernetes pull secret​

Create a kubernetes.io/dockerconfigjson secret in the namespace where Coroot will be deployed, using the JSON from the previous step:

cat <<'EOF' | kubectl create secret generic coroot-registry-auth -n coroot \
  --type=kubernetes.io/dockerconfigjson --from-file=.dockerconfigjson=/dev/stdin
{
  "auths": {
    "example.jfrog.io": {
      "auth": "<token from the Artifactory dialog>",
    }
  }
}
EOF

Step 4: Install the operator​

Install the Coroot operator with the custom registry configuration:

helm repo add coroot https://coroot.github.io/helm-charts
helm repo update coroot

helm install -n coroot --create-namespace coroot-operator coroot/coroot-operator \
  --set registry.url=https://example.jfrog.io/coroot \
  --set registry.pullSecret=coroot-registry-auth

The operator will now:

  • Discover new component versions by querying your Artifactory registry.
  • Use your registry for all component image paths.
  • Attach the pull secret to all component pods so kubelet can authenticate when pulling images.

Step 5: Deploy Coroot​

Create the Coroot custom resource as usual:

apiVersion: coroot.com/v1
kind: Coroot
metadata:
  name: coroot
  namespace: coroot
spec: {}

The operator will pull all images through your Artifactory instance. You can verify by checking the pod image references:

kubectl get pods -n coroot -o jsonpath='{range .items[*]}{.metadata.name}{"\t"}{.spec.containers[*].image}{"\n"}{end}'

All images should point to example.jfrog.io/coroot/....

Self-signed certificates​

If your Artifactory instance uses a self-signed TLS certificate, enable TLS skip verify:

helm upgrade -n coroot coroot-operator coroot/coroot-operator \
  --set registry.url=https://example.jfrog.io/coroot \
  --set registry.pullSecret=coroot-registry-auth \
  --set registry.tlsSkipVerify=true
